9.7INCH CAPACITIVE TOUCH DISPLAY, 768×1024, TOUGHENED GLASS PANEL, HDMI INTERFACE, IPS PANEL, 10-POINT TOUCH, WAVESHARE 26698

  • Auf Lager NEIN
  • Marke: WAVESHARE
  • ID-Nummer: 4011/
146,67 €

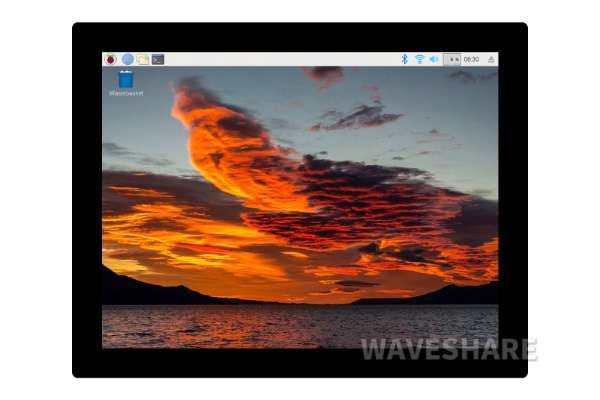

9.7″ Capacitive Touch Display

High Resolution | Multi-Point Touch | Full Color





    • Size9.7″
    • Resolution768×1024
    • Display InterfaceHDMI
    • Display PanelIPS
    • Viewing Angle178°
    • Touch TypeCapacitive
    • Touch Points10-Point
    • Touch PortUSB Type-C
    • Touch PanelToughened Glass
    • OSD MenuBrightness/Contrast
  • Audio Output 13.5mm Jack
  • Audio Output 24PIN Header
The display orientation is portrait by default, 768×1024 resolution (H×V). Change the software config for landscape display.



Device & System Support




Raspberry Pi
Supports Raspberry Pi OS, 10-point touch, driver free
Supports Ubuntu / Kali / WIN10 IoT, single point touch, driver free
Supports Retropie, driver free

Supports all versions of Raspberry Pi

Jetson Series Board
Supports Ubuntu, single point touch, driver free

PC
Supports Windows 11 / 10 / 8.1 / 8 / 7, 10-point touch, driver free



Connection Examples

Working With Raspberry Pi 5



Working With Raspberry Pi 4B



Working With Raspberry Pi 3B+



Working With Raspberry Pi Zero 2 W

You need to prepare additional mini HDMI adapters and USB cables



Working With Jetson Series Board



Working With PC


for reference only, the above controller boards or host are NOT included

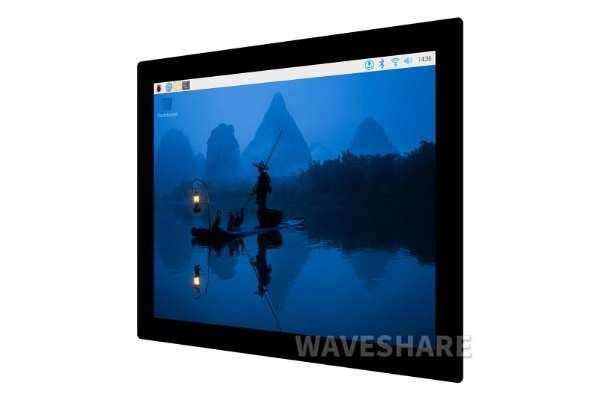

IPS Display Panel

Excellent Display Performance With 178° Wide Viewing Angle


Capacitive 10-Point Touch
  1. up to 10-point touch, depending on the operating system
  2. up to 6H hardness toughened glass panel



Supports Backlight Adjustment Via Software

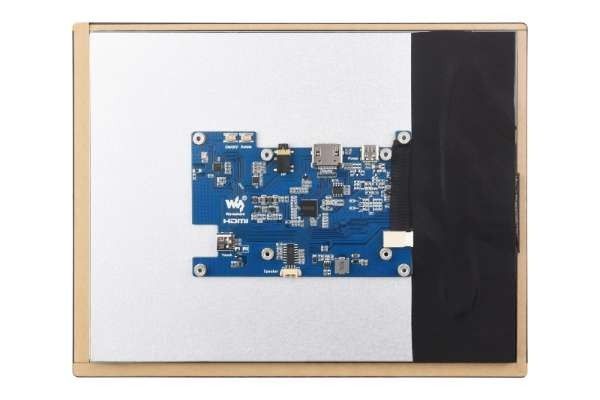

Interface Introduction




Dimensions

Specifikacije

Glavno

Processor
Broadcom BCM2837B0, Cortex-A53 64-bit SoC @ 1.4 GHz
Memory
512MB LPDDR2 SDRAM
Connectivity
2.4 GHz and 5 GHz IEE 802.11.b/g/n/ac wireless LAN, Bluetooth 4.2/BLE
Access
Extended 40-pin GPIO header
Video & sound:
1 × full size HDMI

Dimenzije

Dolžina
99 mm
Širina
207 mm
Višina
208 mm
